TT MODULE INSERTS
216
JACK PANELS
PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

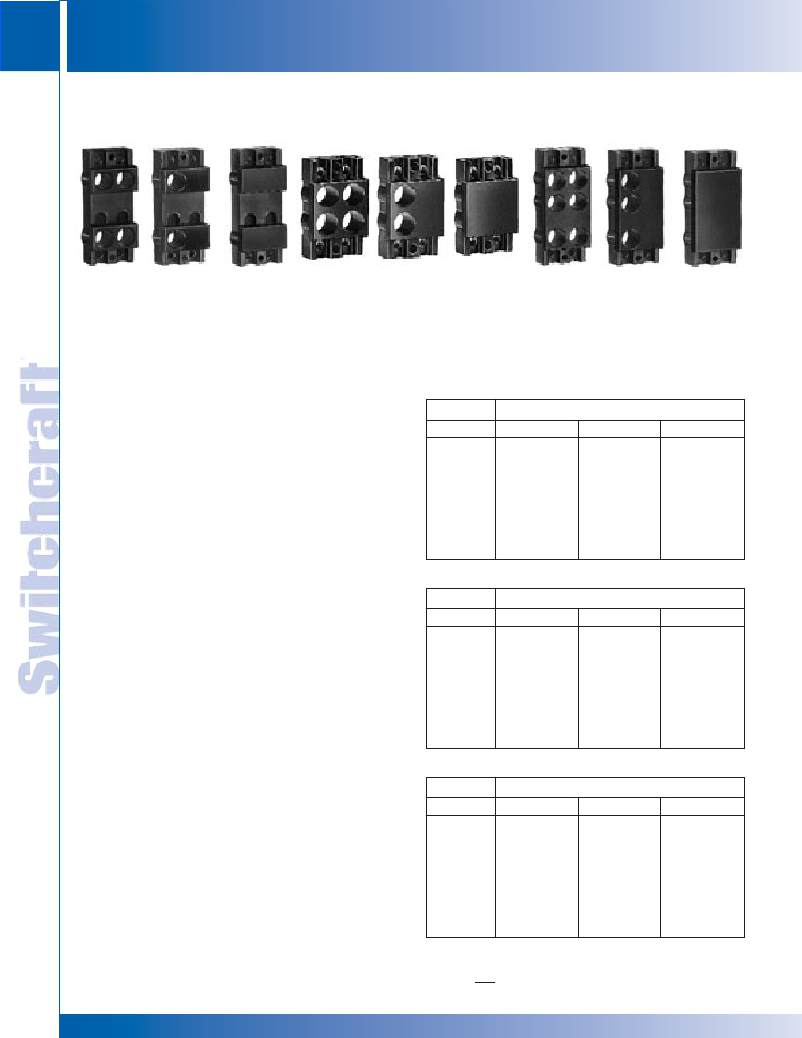

TT MODULE INSERTS – SERIES TT91, TT92 AND TT93
SERIES TT91
SERIES TT92
SERIES TT-93
TT91402
TT91202
TT91002
TT92402
TT92202
TT92002
TT93602
TT93302
TT93002
(black, 4 hole) (black, 2 hole) (black, blank)
(black, 4 hole) (black, 2 hole) (black, blank)
(black, 6 hole) (black, 3 hole) (black, blank)
Module colors are black or gray (standard); red, green, blue,
white and yellow available on special order. Each module has
SERIES TT91 (For Double Row Panels)
a matte finish front surface and includes two mounting screws
Color
Openings
(Switchcraft P2348).
4
2
Blank
SERIES TT91
Choice of blank, two- or four-hole modules for double row
panels Series TT51, TT55 and TT56. The following
components are used with Series TT91 modules:
1. Front mount TT-Jax ? jacks.
2. Front mount TT-Switch ? switches Series TT300FM
and WTT420FM.
3. Front mount TT Lamp Jax ? lamp jacks TT420FM
Red
Black
Green
Blue
White
Yellow
Gray
? TT91401
? TT91402
? TT91403
? TT91404
? TT91405
? TT91408
? TT91411
? TT91201
? TT91202
? TT91203
? TT91204
? TT91205
? TT91208
TT91211
? TT91001
? TT91002
? TT91003
? TT91004
? TT91005
? TT91008
? TT91011
and WTT420FM.
SERIES TT92
SERIES TT92 (For Twin Row Panels)
Blank, two- or four-hole modules for twin row panels Series
Color
Openings
TT59, TT60, TT61 and TT62. TT Twin-Jax ? jacks are used
4
2
Blank
with these modules.
Red
? TT92401
? TT92201
? TT92001
SERIES TT93
Blank, three- or six-hole modules for three row panels
Series TT53, TT54, TT57 and TT58. Tri-Jax ? jacks are
used with these modules.
SPECIFICATIONS
Module: Precision molded thermosetting plastic in colors.
Black
Green
Blue
White
Yellow
Gray
? TT92402
? TT92403
? TT92404
? TT92405
? TT92408
? TT92411
TT92202
? TT92203
? TT92204
? TT92205
? TT92208
TT92211
? TT92002
? TT92003
? TT92004
? TT92005
? TT92008
? TT92011
Mounting Screws: Black zinc, #3-48 x .312" flat head
machine screws.
SERIES TT93 (For Three Row Panels)
ORDERING
Color
Openings
1. Order by part number from tables.
2. Contact Switchcraft for any special order items.
4
2
Blank
SPECIFYING NOTE: The part numbers listed on this
page are for modules only. Refer to following page for
specifying panel assemblies with components installed.
Red
Black
Green
Blue
White
Yellow
Gray
TT93601
TT93602
TT93603
TT93604
TT93605
TT93608
TT93611
? TT93301
TT93302
? TT93303
? TT93304
? TT93305
? TT93308
TT93311
TT93001
TT93002
TT93003
TT93004
TT93005
TT93008
TT93011
? Special order only; contact factory for price and delivery.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
